DIVEPOT
Small Recreational Submarine
Concept design of submarine for
3rd YDC Award yacht design competition
GOLD AWARD
DIVEPOT is a small recreational submarine and designed for four people. According to the user needs for on and under water, the design concept comes form the bio-features of Mola Mola.
DIVEPOT 設計為四人搭乘的小型遊樂淺艇，船體設計含淺入水中及浮於水面的使用需求，因此DIVEPOT以翻車魚的外型、生物特性及活動方式，作為設計發想。
全體尺寸: L6140mm x H6700mm x W1720mm
主體尺寸: L6140mm x H3650mm x W1720mm
動力系統: 水噴式推進器 x2
最高乘載: 4人
潛水深度: 120m
Water Jet
水噴式推進器

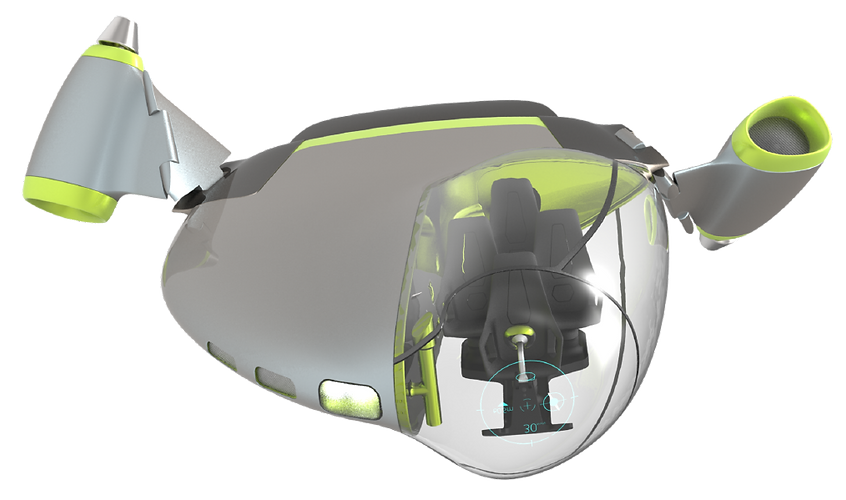

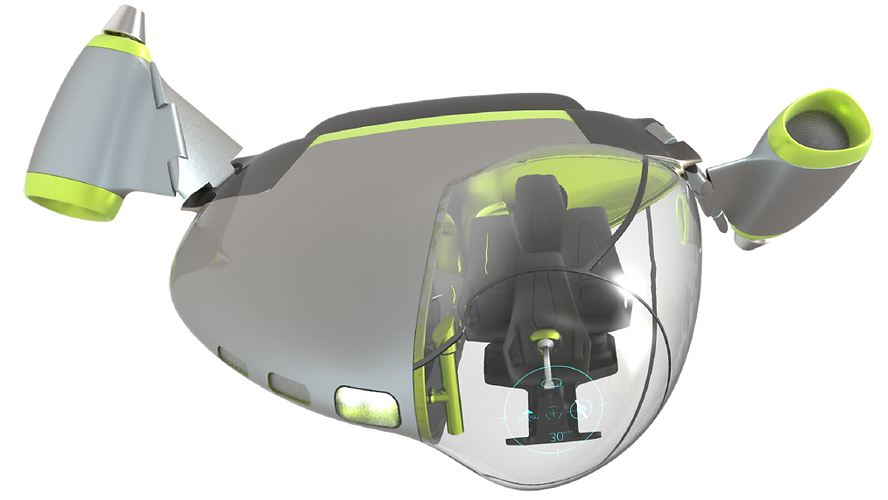

The power system is from the water jets at the two wings of submarine.
潛艇的動力系統源自於安裝在船體翼尾的兩組水噴式推進器
Foldable structures
可折疊構造
3 segments

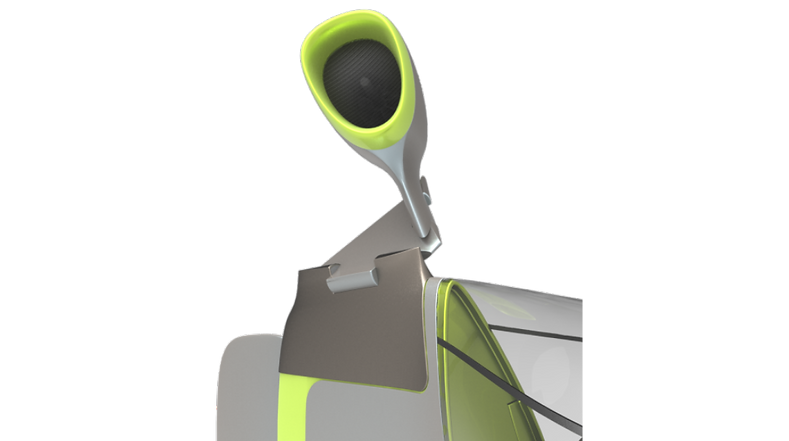

兩組水噴式推進器前臂為可折疊構造
Movement
在水中仿生翻車魚活動方式
Biomimetic the activity of Mona's dorsal and ventral fins for the mechanical arms, and according the angles changing between these two arms to make the movements more easier and maneuverable.
仿生翻車魚背鰭與臀鰭的運動方式設計三節式機械臂來連結到船體，
使船體可以透過這兩組動力系統之間角度變換來在水中作靈活的運動
Spiral
駕駛艙可旋轉

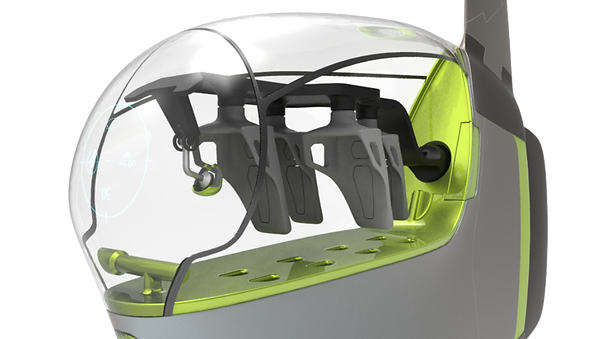

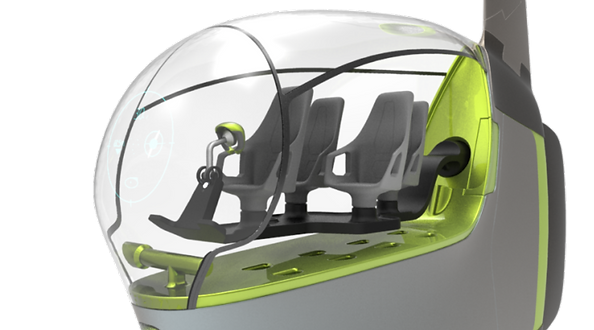

Cockpit have been design for a individual space from the submarine and it can rotate in 360 degree.
駕駛艙內部設計為一個可360旋轉的分離空間，使船體可以減少受地形的影響, 能依情況自由旋轉船身，而駕駛艙依舊保持在水平狀態
The design of Individual cockpit makes the submarine can get more closer to the undersea topography and keep horizontal sight at the same time.
駕駛艙分離式設計使船體可貼近地形自由旋轉船身, 駕駛艙保持水平位置
Movement
在海平面仿生翻車魚活動方式
When this submarine is above water, its mola mola body shape could turn on one side and make a big floating plane on the water.
浮到水面上之後可從船艙左側出到外部空間, 在船體的後半部也配置了一個置物空間可放置一些水上遊樂用品, 使使用者能享受悠閒的日光浴與水上遊樂
